Product Advantage
Black Color– Pursuing Ultimate Aesthetics
We have chosen the most classic black as the primary color for our products, making it the ideal choice for distributed photovoltaic systems. Black enhances the visual appeal of your rooftop while significantly reducing light pollution compared to traditional aluminum silver.
Excellent Mechanical Strength

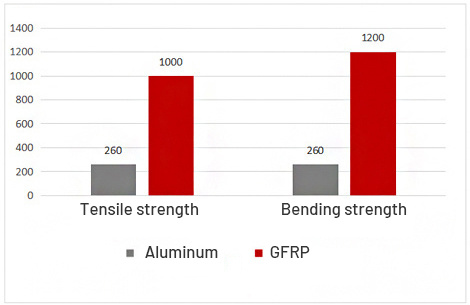

GFRP demonstrates exceptional mechanical properties, with a tensile strength of up to 1000 MPa and a flexural strength reaching 1200 MPa. In load testing, GFRP exhibits a positive pressure bearing capacity of over 7000 Pa and a negative pressure bearing capacity of up to 3600 Pa, fully meeting the demands of various rigorous application scenarios.
| 2382*1134*30 Double Glazing Solar Module | |||||
| Static load: | |||||
| Positive pressure | 7000 MPa | P | Mounting | ||
| Negative pressure | 3600 MPa | P | Block/ Bolt | ||
| Test results: | |||||
| Stresses | Cycle time | Cyclical index | Wind rating | Mounting | |
| ±1500 | 10s | 20000 | 15 | Block/Bolt | |

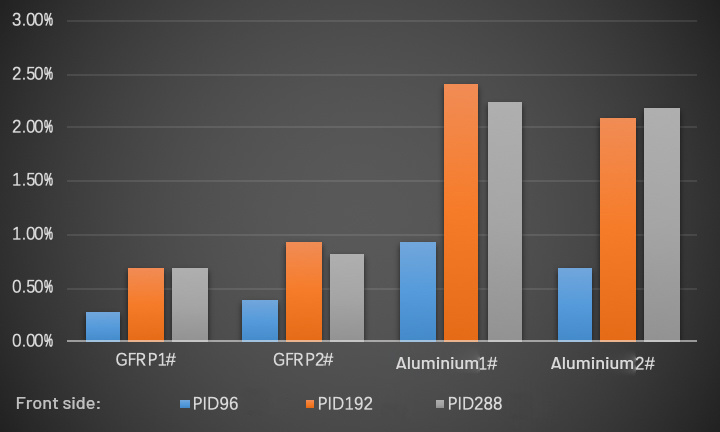

Insulation - PID Resistant, No Grounding Required
The composite frame GFRP exhibits an exceptional volume resistivity of >10¹⁴ Ω·m, classifying it as a high-performance insulating material capable of effectively reducing the PID effect.
The aluminum frame must be grounded for protection
Composite frames do not require grounding
Acids, Alkalis, and Salt Spray Resistant - The Ideal Choice for Coastal and Chemical Park Applications
AL frames
GFRP
The rusted aluminum frame of a solar module from an offshore photovoltaic power plant

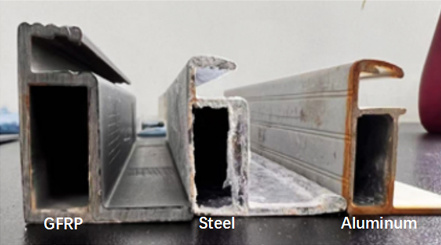

Visual Comparison of Frame Conditions Following Salt Spray Testing
